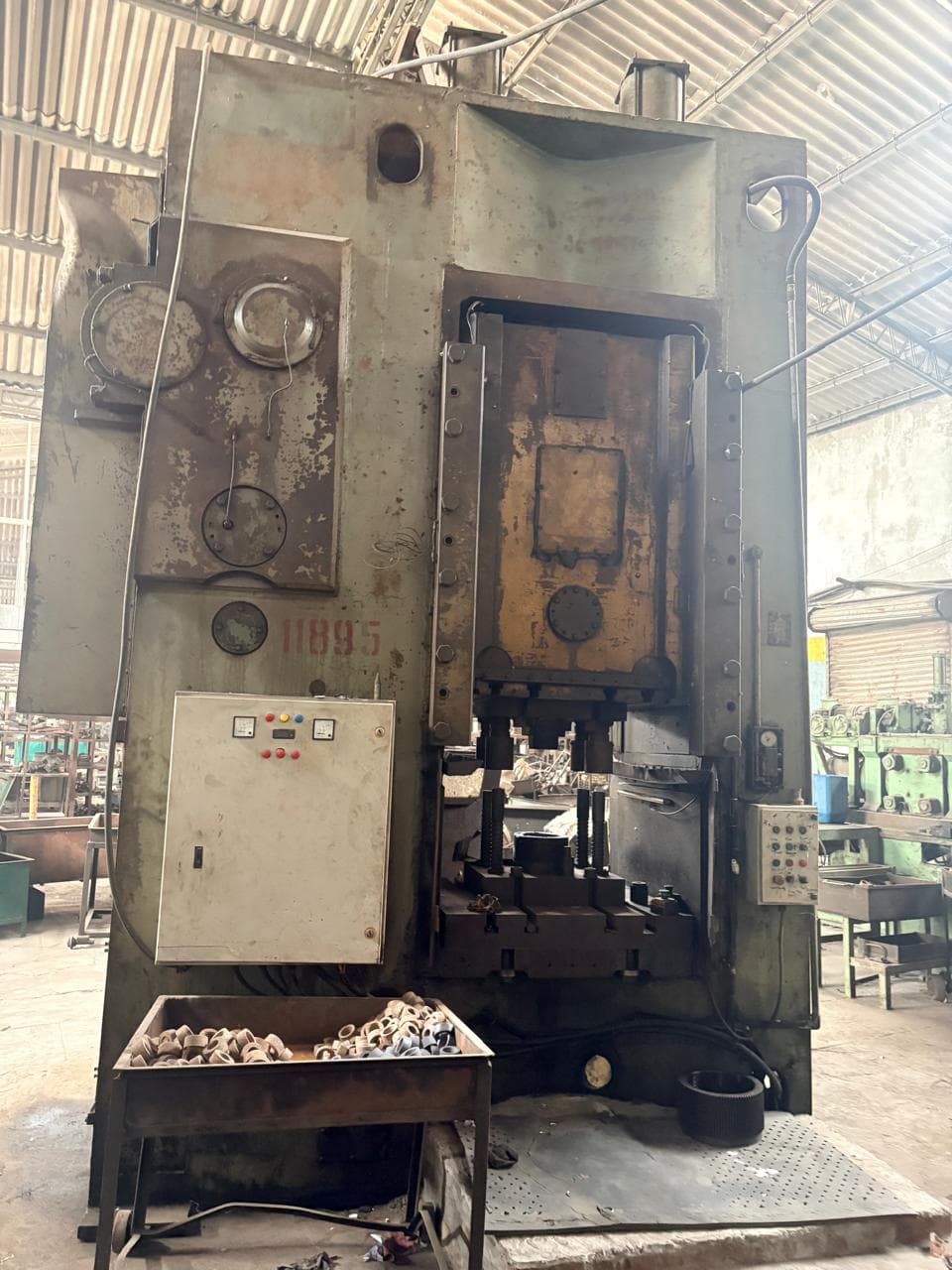

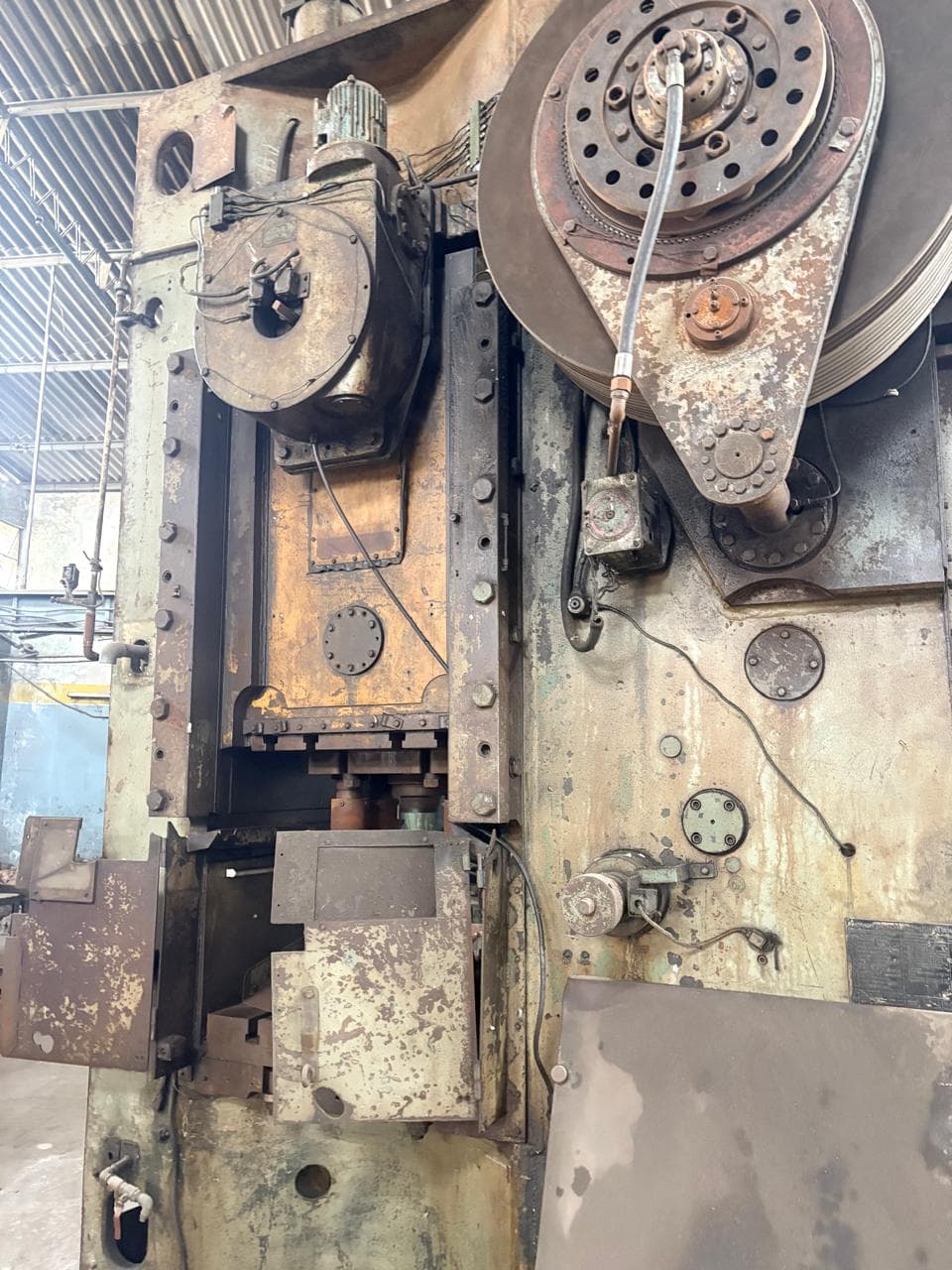

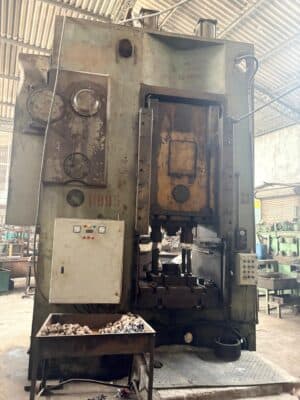

냉간 단조 프레스 Barnaul KB0036 - 400 톤
기술 사양 -
Barnaul KB0036 (ID: 76476)
| 유형 | 냉간 단조 프레스 |
| 제조사 | Barnaul |
| 모델 | KB0036 |
| Rated capacity on the slide | 400 ton |
| Slide stroke | 240 mm |
| Frequency of the continuous strokes of the slide | 32/1 min |
| Max. single-stroke engagements | 16/1 min |
| Adjustment of the tool’s height | 16 mm |
| Maximum tools shut-height | 590 mm |
| Dimensions of the bolster plate | |
| Left-to-right | 1000 mm |
| Front-to-back | 1000 mm |
| Overall dimensions | 3175 x 2260 x 4970 mm |
