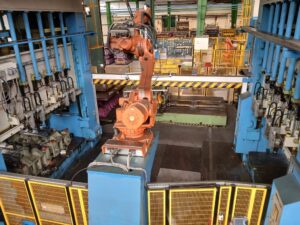

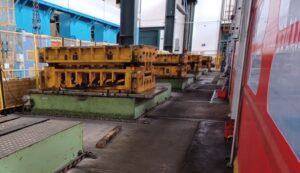

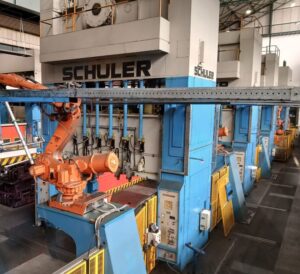

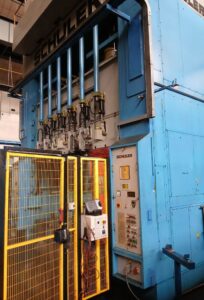

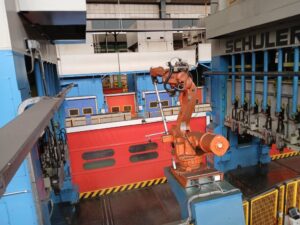

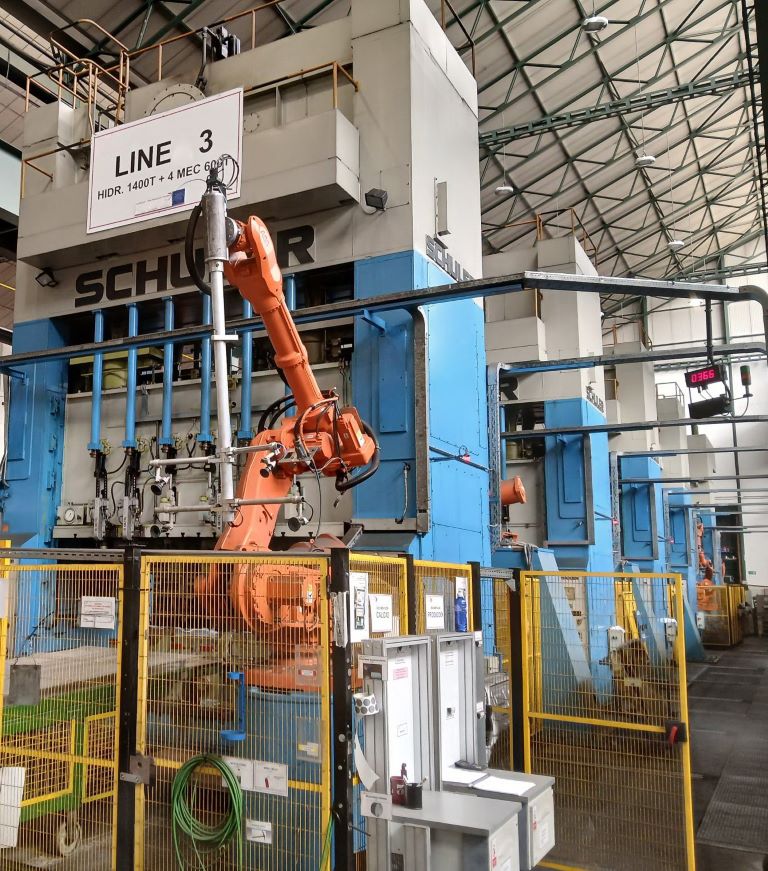

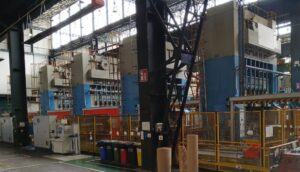

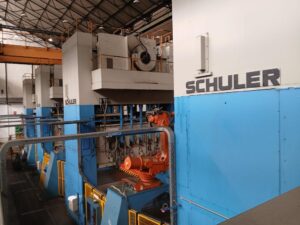

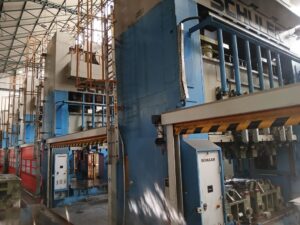

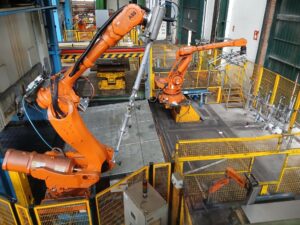

스탬핑 라인 Schuler G2 - 3800 톤
Schuler G2 스탬핑 라인 - 설명
기술 사양 Schuler G2 (ID:76324)
| Type | Stamping line |
|---|---|
| Manufacturer | Schuler |
| Model | G2 |
| Year of manufacture | 1989 |
| Hydraulic press SMG (1) | |
| Pressure | 1400 ton |
| Stroke | 950 mm |
| Daylight | 2000 mm |
| Table surface area | 3600 x 2500 mm |
| Slide area | 3600 x 2500 mm |
| Die cushion capacity in table | 400 ton |
| Die cushion stroke | 500 mm |
| Die cushion pad area | 3060 x 1860 mm |
| Approach speed | 400 mm / sec |
| Working speed | 40 / 80 mm / sec |
| Return speed | 400 mm / sec |
| Required power | 450 kW |
| Weight of machine approx. | 240 ton |
| Mechanical presses Schuler (4) | |
| Pressure | 600 ton |
| SPM | 16 |
| Ram stroke | 762 mm |
| Slide adjustment | 406 mm |
| Shut height (stroke down, adjustment up) | 1322 mm |
| Free frontal opening L-R | 3700 mm |
| Table surface area | 3350 x 2134 mm |
| Slide area | 3350 x 2134 mm |
| Die cushion capacity in table | 180 ton |
| Die cushion stroke | 305 mm |
| Ejector in ram | 60 ton |
| Ejector stroke in ram | 230 mm |
| Required power | 90 kW |
| Weight of machine approx. | 185 ton |
