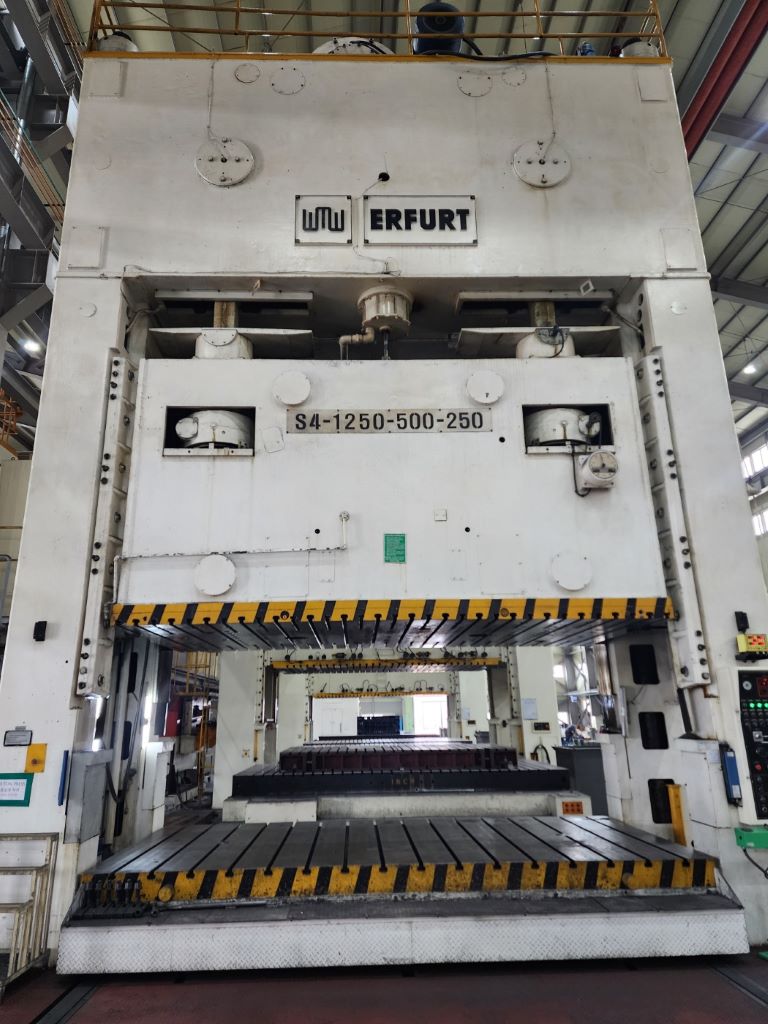

스탬핑 프레스 Erfurt PKZV I 1250 FS - 1250 톤
제원 (EN) -
스탬핑 프레스 Erfurt PKZV I 1250 FS - 1250 톤 (ID: 76296)
| Type | Stamping press |
| Manufacturer | Erfurt |
| Model | PKZV I 1250 FS |
| Year of manufacture | 1983 |
| Overhaul | 1998 |
| Capacity | 1250 ton |
| Slide stroke | 700 mm |
| Slide adjust | 600 mm |
| Die height | 1500 mm |
| SPM | 11 |
| Bolster area | 5000 x 2500 mm |
| Slide area | 5000 x 2500 mm |
| Distance between column | 5100 mm |
| Side window | 1600 mm |
| Die cushion | 250 ton |
| Cushion stroke | 250 mm |
| Ejector | 40 ton |
| Main drive | 152 kw |
| Machine weight | 320 ton |
