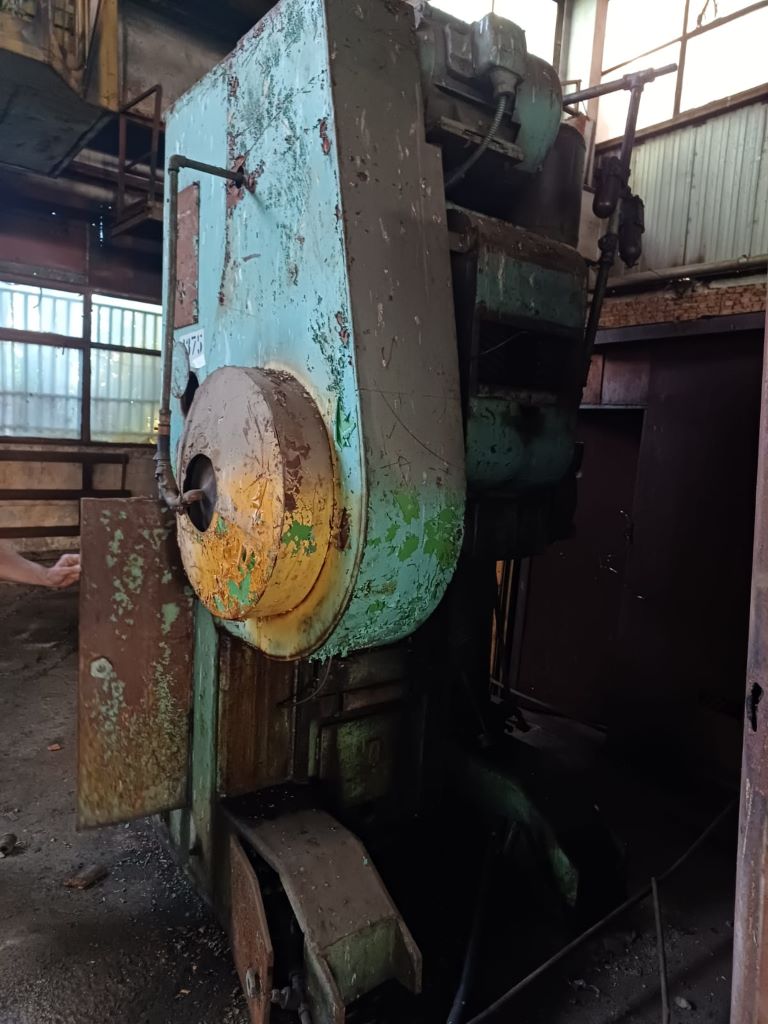

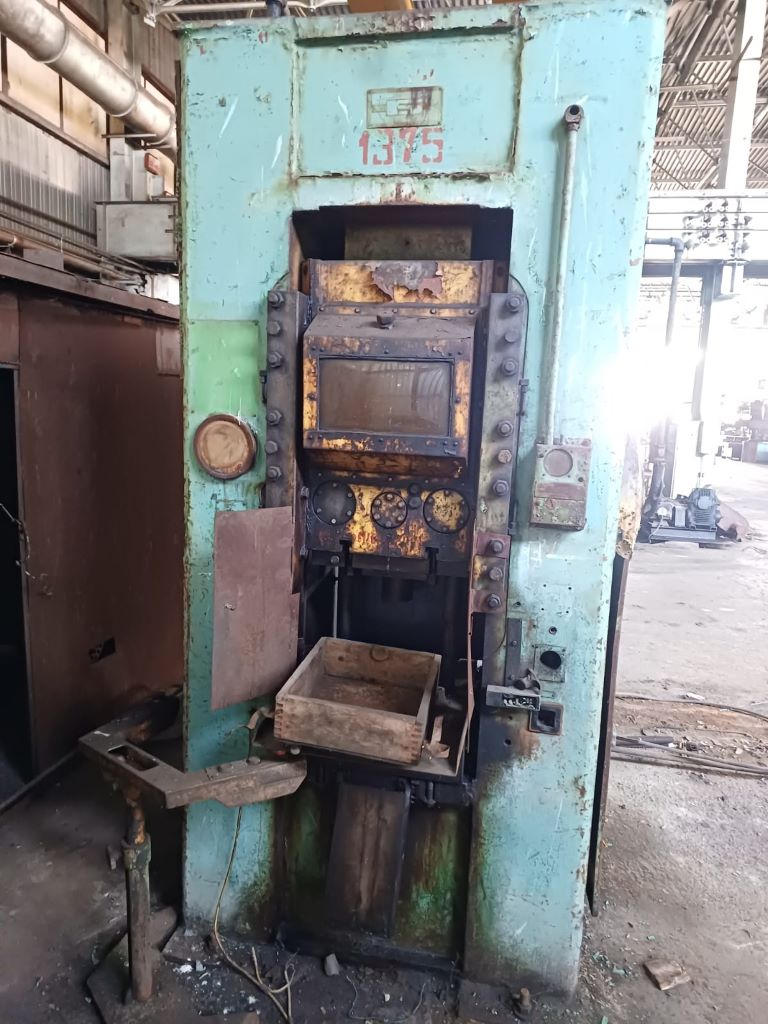

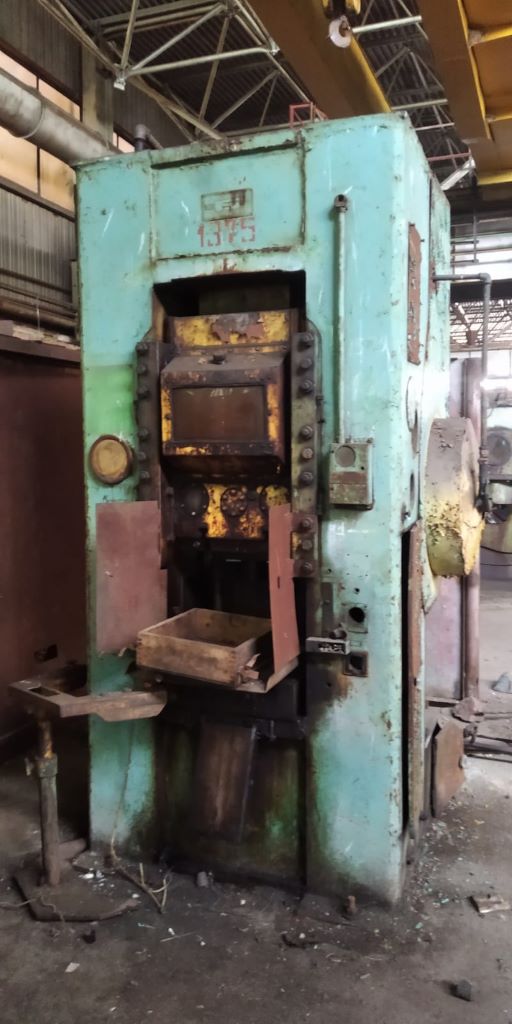

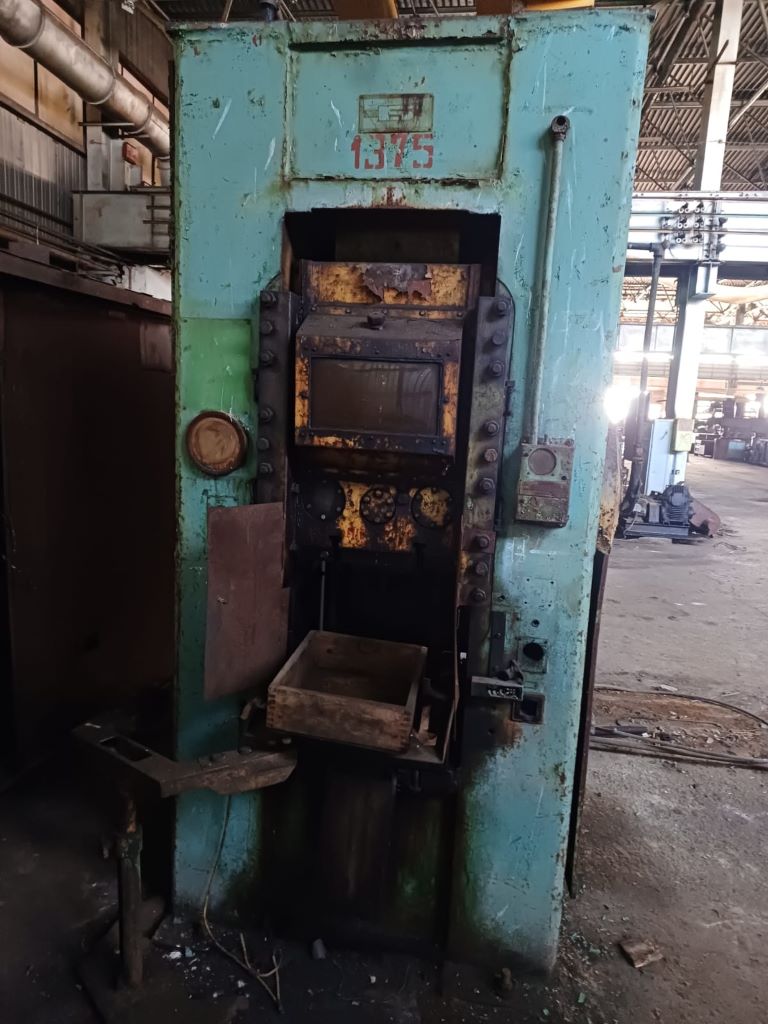

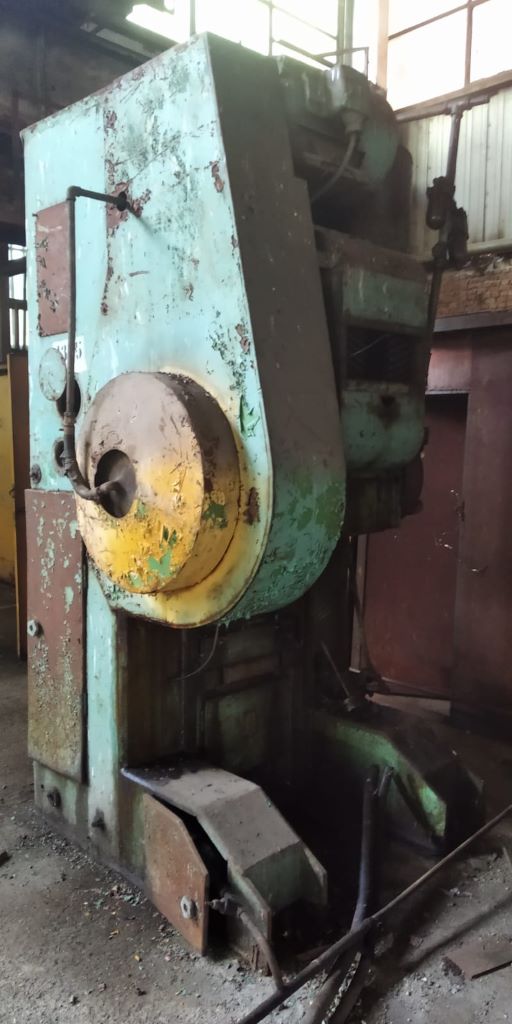

너클 조인트 프레스 Barnaul K8336 - 400 톤
Barnaul K8336 너클 조인트 프레스 - 설명
기술 사양 Barnaul K8336 (ID:76310)
| 유형 | 너클 조인트 프레스 |
| 제조사 | Barnaul |
| 모델 | K8336 |
| Nominal force | 400 ton |
| Ram stroke | 130 mm |
| Number of continuous strokes per minute | 50 |
| Stroke of ram to its utmost lower position | 1,6 mm |
| Distance between bolster plate and ram in its lower position at upper position of adjustment | 375 mm |
| Adjustable distance between bolster plate and ram | 12 mm |
| Bolster plate dimensions | |
| From left to right | 500 mm |
| From front to back | 500 mm |
| Ram dimensions from front to back | 400 mm |
| Ejector stroke | |
| Upper | 16 mm |
| Lower | 80 mm |
| Ejector force | |
| Upper | 40 kN |
| Lower | 120 kN |
| Main drive power | 12 kW |
| Press dimensions | |
| From left to right | 1940 mm |
| From front to back | 1240 mm |
| Height above floor level | 2800 mm |
| Weight | 8425 kg |
