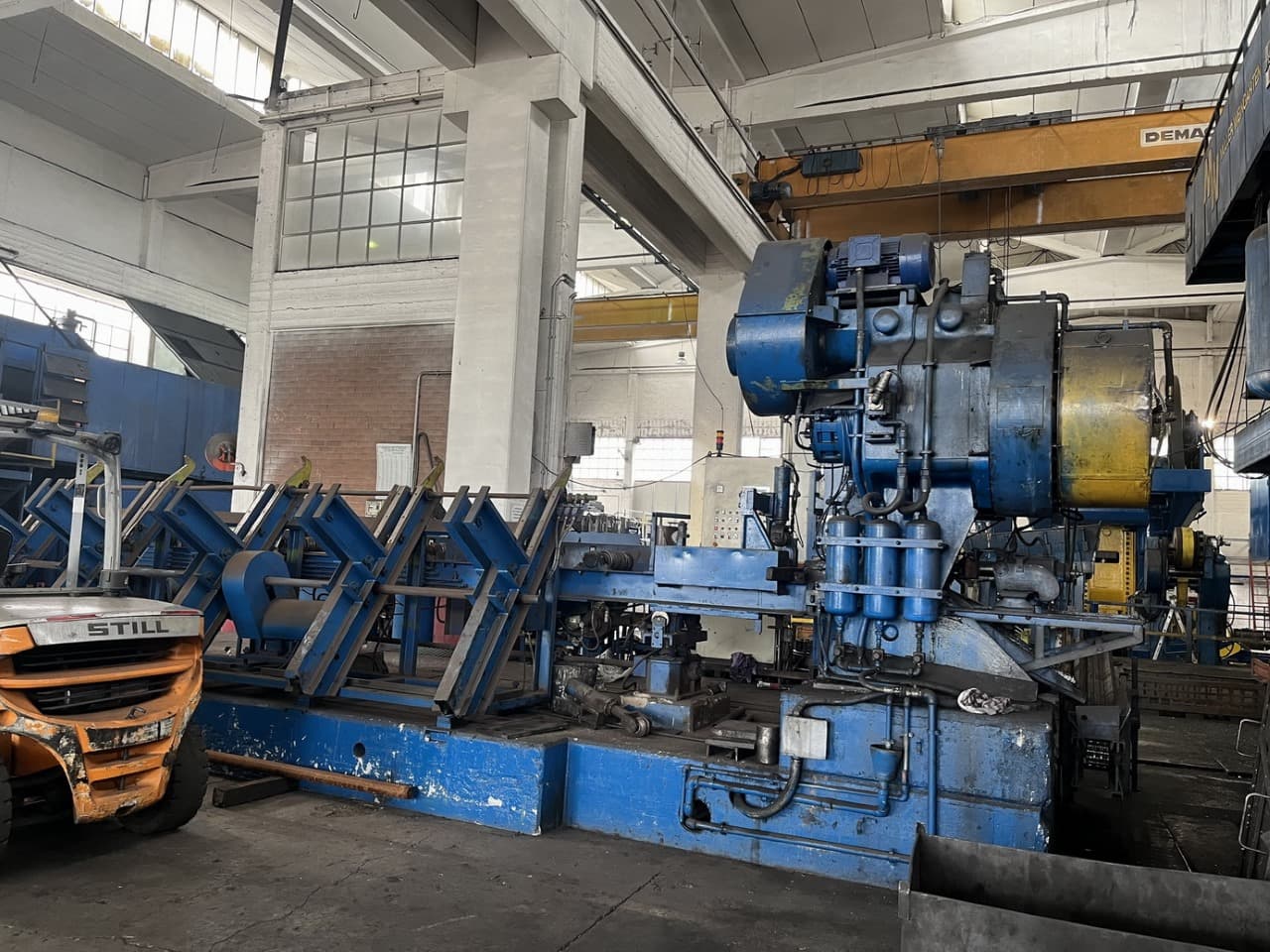

빌렛 전단기 Ficep F360 - 360 톤
제원 (EN) -
빌렛 전단기 Ficep F360 - 360 톤 (ID: 76491)
| Type | Billet shear |
| Manufacturer | Ficep |
| Model | F360 |
| Cutting force | 3600 kN / 360 ton |
| Strokes per minute full speed | 50 |
| Cuts per minute max | 27 |
| Motor power | 22 kW |
| Gauge support bracket standard quantity | 2 |
| Minimum measurable length standard | 0 mm |
| Maximum measurable length standard | 600 mm |
| Gauge support bracket special quantity | 1 |
| Maximum measurable length special | 1600 mm |
| Minimum support force TQ device | 375 kN / 37,5 ton |
| Maximum support force TQ device | 875 kN / 87,5 ton |
| Long piece support minimum length | 400 mm |
| Long piece support maximum length | 1600 mm |
| Maximum bar dimension center square | 100 mm |
| Maximum bar dimension center round | 105 mm |
| Maximum bar dimension side square | 70 mm |
| Maximum bar dimension side round | 75 mm |
| Scrap piece minimum length | 0 mm |
| Scrap piece maximum length | 250 mm |
| Feeding table length | 12000 mm |
| Minimum bar length automatic loading | 4000 mm |
| Maximum bar length | 7000 mm |
| Roller rotation motors quantity | 2 |
| Roller rotation motor power | 2,2 kW |
| Vertical table movement motor quantity | 1 |
| Vertical table movement motor power | 2,2 kW |
| Loading bed minimum length | 4000 mm |
| Loading bed maximum length | 7000 mm |
| Minimum bar dimension | 40 mm |
| Maximum bar dimension | 100 mm |
| Loading bed maximum capacity | 10000 kg |
| Walking beam motor power | 4 kW |
| Chain motor power | 0,36 kW |
