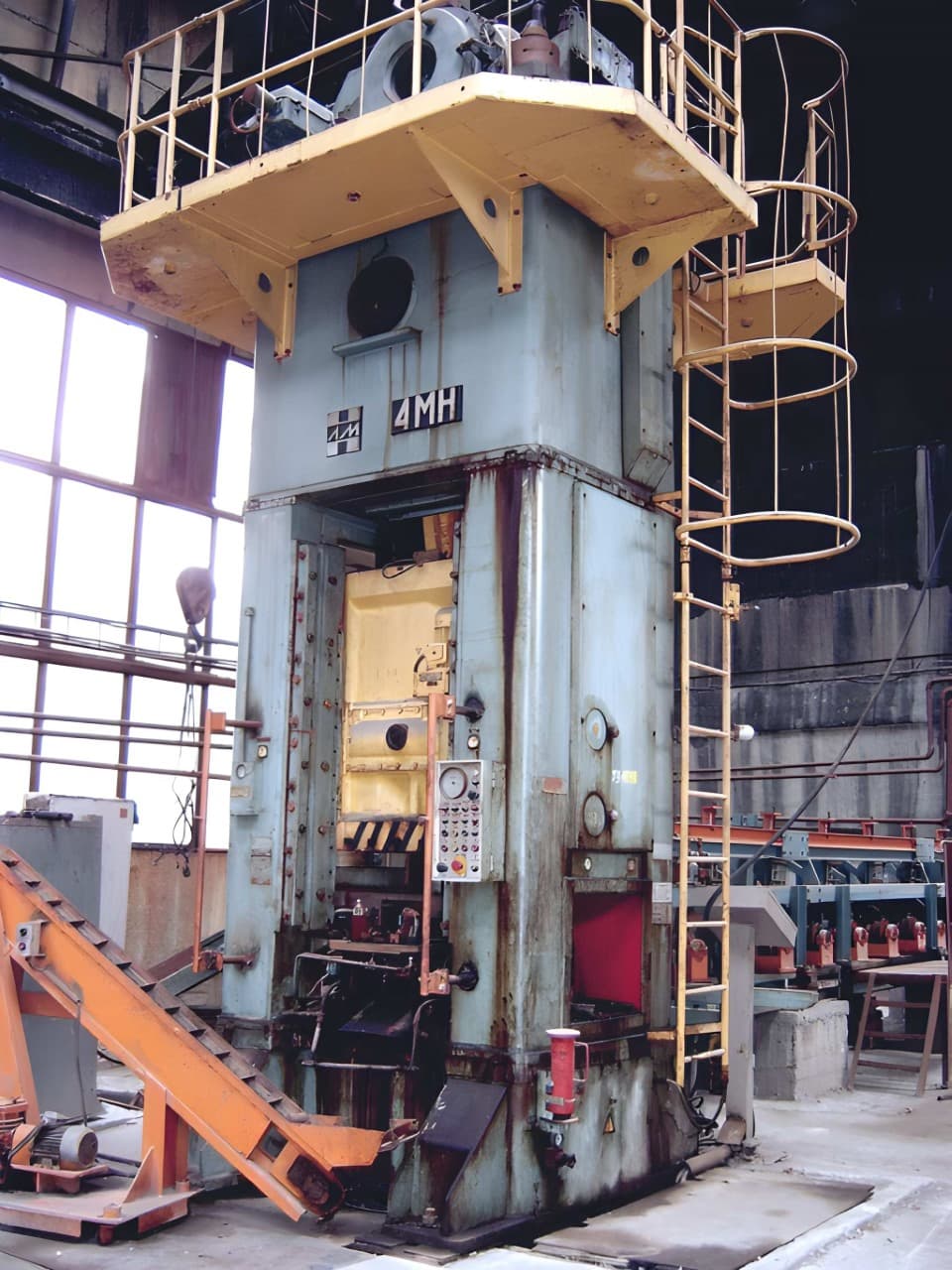

트리밍 프레스 Kuzlitmash KB9536 - 400 톤
제원 (EN) -
트리밍 프레스 Kuzlitmash KB9536 - 400 톤 (ID: S91987)
| Type | Trimming press |
| Manufacturer | Kuzlitmash |
| Model | KB9536 |
| Nominal force | 4000 kN / 400 ton |
| Stroke | 360 mm |
| Slide adjustment motorized | 160 mm |
| SPM continuous | 18 |
| Shut height | 630 mm |
| Table size | 1000 x 1000 mm |
| Slide size | 800 x 800 mm |
| Lateral window | 630 x 530 mm |
| Table height above ground | 660 mm |
| Motor power | 40 kW |
| Overall dimensions | 3100 x 3140 x 5930 mm |
| Weight | 32000 kg |
