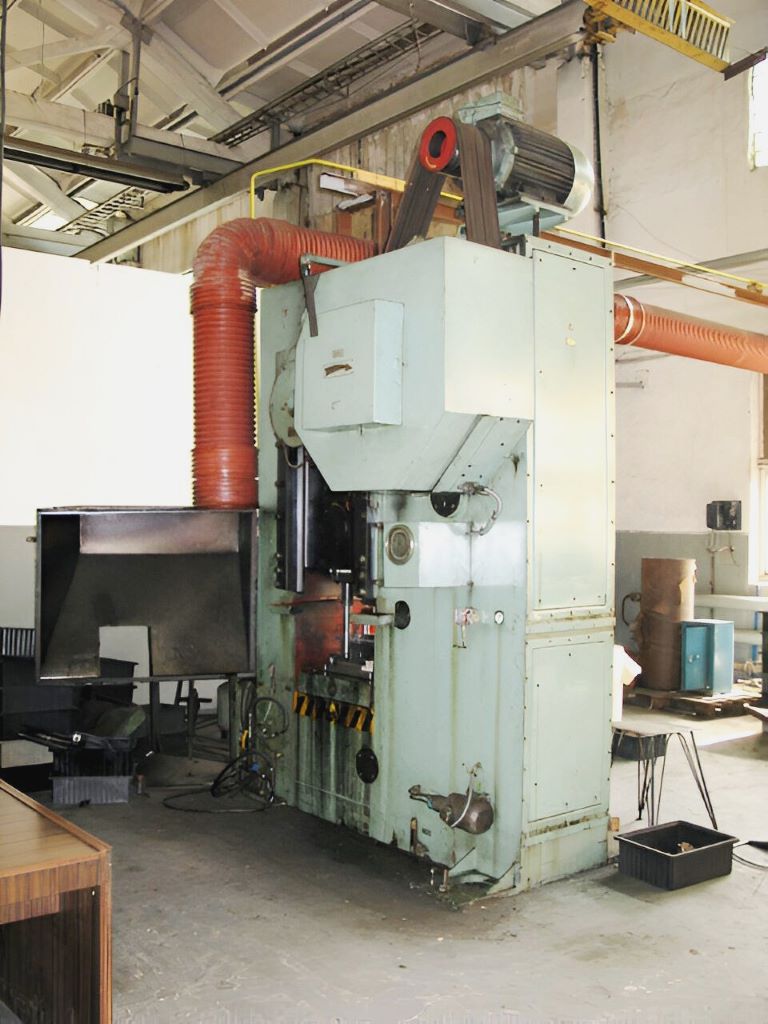

명세서 (EN) - Barnaul KB8338 (ID: S89410)
| Type | Knuckle joint press |
| Manufacturer | Barnaul |
| Model | KB8338 |
| Nominal effort | 630 tons |
| Ram stroke | 150 mm |
| Number of continuous slide strokes | 41 |
| Number of single inclusions per minute | 25 |
| Shut height | 420 mm |
| Stamping area adjustment | 16 mm |
| Table size | 630 x 630 mm |
| Lower knockout | |
| Stroke | 90 mm |
| Force | 200 kN |
| Upper knockout | |
| Stroke | 16 mm |
| Force | 60 kN |
| Main drive motor power | 28 kW |
| Overall dimensions | 2214 x 1485 x 3610 mm |
| Weight | 13415 kg |
