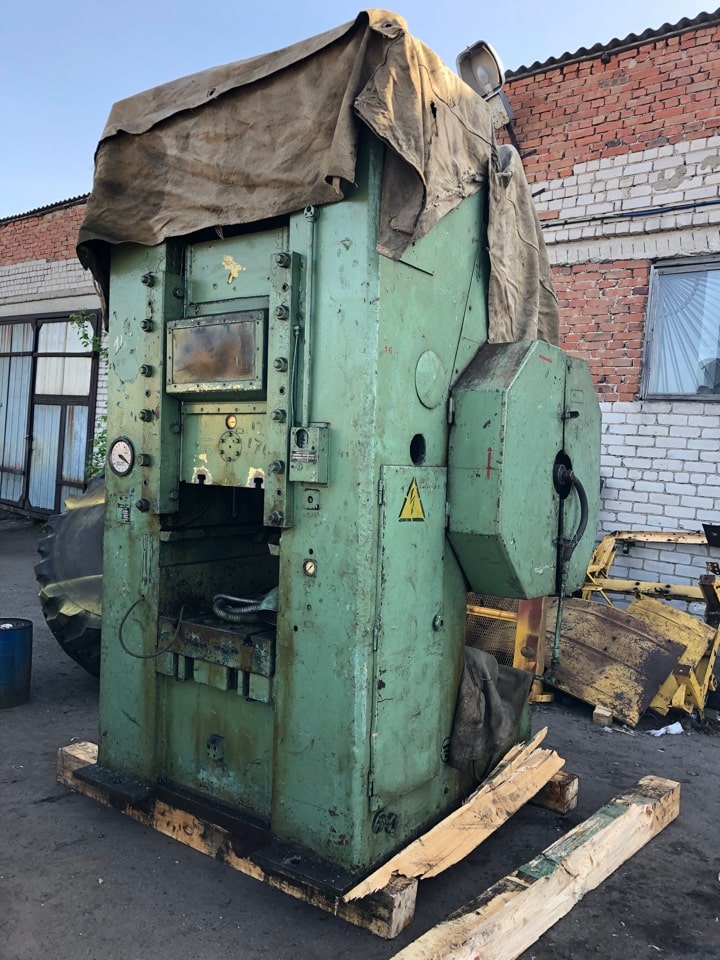

너클 조인트 프레스 Barnaul K8338 - 630 톤
제원 (EN) - 너클 조인트 프레스 Barnaul K8338 - 630 톤 (ID: 75152)
| Type | Knuckle joint press |
| Manufacturer | Barnaul |
| Model | K8338 |
| Nominal effort | 630 ton |
| Ram stroke | 150 mm |
| Number of strokes in 1 minute | 40 |
| Shut height | 420 mm |
| Stamping area | 560 mm |
| Stamping area adjustment | 15 mm |
| Table size | 630 x 630 mm |
| Ram dimension front-back | 500 mm |
| Lower knockout | |
| Stroke | 90 mm |
| Force | 200 kN |
| Upper knockout | |
| Stroke | 16 mm |
| Force | 60 kN |
| Main drive motor power | 21 kW |
| Overall dimensions | 2214 x 1485 x 3610 mm |
| Weight | 13575 kg |
