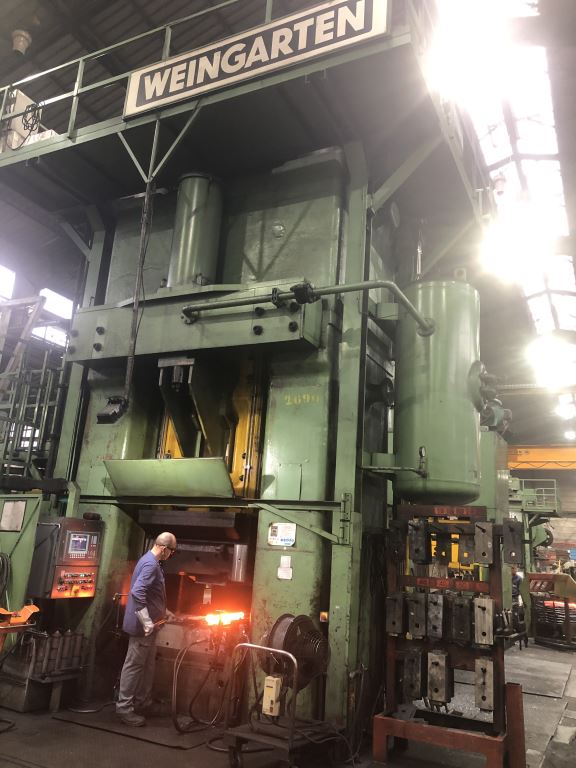

스크류 프레스 Weingarten PSH 4-560 - 5300 톤

Dabrox 매물 ID: 76367

이 오퍼에 대한 자세한 정보를 요청하세요:
- 재고 여부, 가격
- 지불/배송 조건
- 사양, 상태, 사진 등

* 필수 항목

Weingarten PSH 4-560 스크류 프레스 - 설명

스크류 프레스 Weingarten PSH 4-560 - 5300 톤 (ID:76367)는 스크류 회전을 통해 힘을 발생시키고 램의 직선 운동으로 변환하는 프레스 장비입니다. 이 유형의 프레스는 다양한 벌크 금속 성형 작업에 사용됩니다. 높은 에너지 용량과 정밀한 스트로크 제어를 결합하여 엄격한 공차의 부품을 스탬핑할 때 특히 중요합니다.

기술 사양 Weingarten PSH 4-560 (ID:76367)

유형스크류 프레스
제조사Weingarten
모델PSH 4-560
제조 연도1990
Maxi continous Forging force5300 ton
Spoting maxi force6300 ton
Brut Power with a stroke of 500 mm630 Kns
Screw diameter560 mm
Maxi Stroke600 mm
Mini Stroke250 mm
Cycle time for W max3.5 sec
Stroke / min15
Distance between table and ram1250 mm
Stroke down1250 mm
Stroke Up1850 mm
Clearance between slides1500 mm
Table sizewidth x deepness1300 x 1400 mm
Space between Upright1500 mm
Height600 mm
Ram size1300 x 1400 mm
Height above floor level7500 mm
Approx Weight230 Tons
