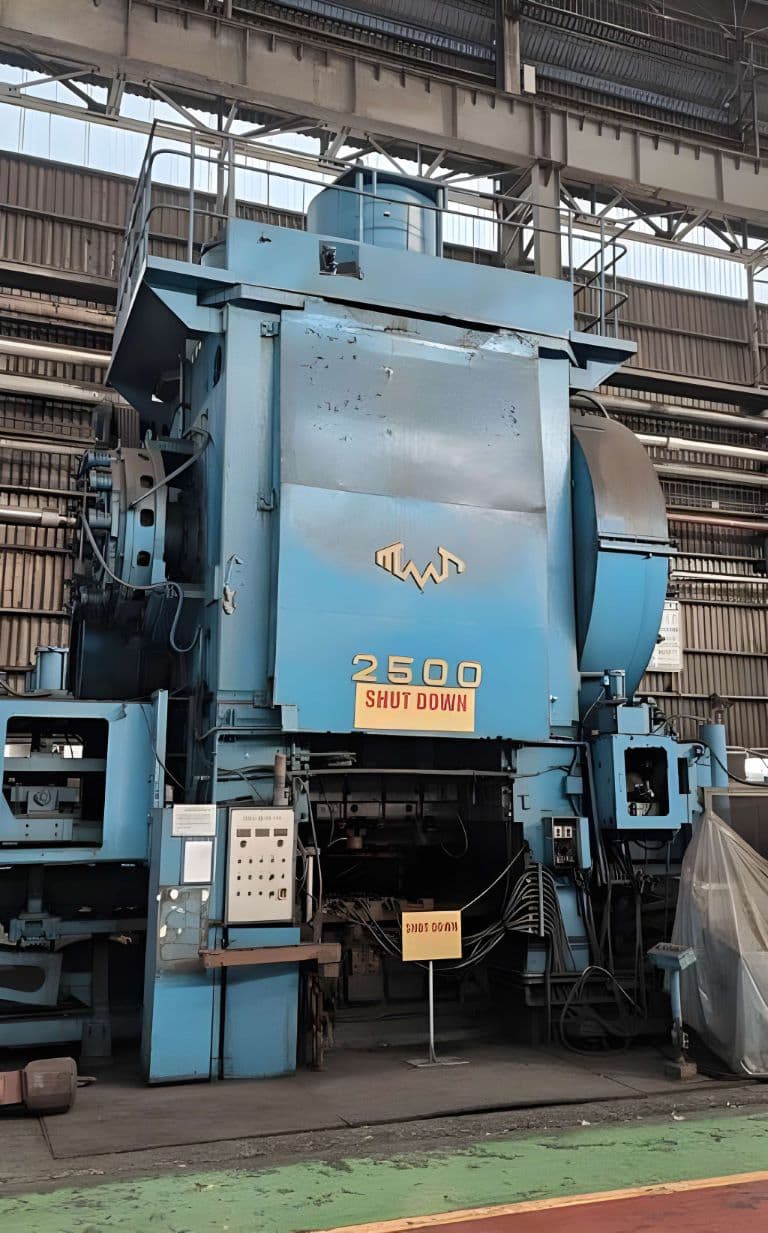

열간 단조 프레스 TMP Voronezh KA8044 - 2500 톤
제원 (EN) -
열간 단조 프레스 TMP Voronezh KA8044 - 2500 톤 (ID: 76456)
| Type | Hot forging press |
| Manufacturer | TMP Voronezh |
| Model | KA8044 |
| Capacity | 2500 ton |
| Ram stroke | 320 mm |
| SPM (Continuous) | 65 |
| SPM (Discont.) | 18 |
| Shut height | 905 mm |
| Ram adjustment | 10 mm |
| Bed size | 1340 x 1400 mm |
| Side windows | 1320 x 1100 mm |
| Main motor | 3PH x 6P x 440V 150Kw, 60Hz |
| Air pressure | 5-7 Kg/cm2 |
| Upper ejector stroke | 50 mm |
| Lower ejector stroke | 70 mm |
| Press size | 4000 x 6710 mm |
| Weight | 145 ton |
| Hangu 800 Kw induction heater & step feeder | |
| Yom | 2011 |
| Main power | 6Ph 580V 1050KVA, 60Hz |
| Control Power | 3Ph 440V 50KVA, 60Hz |
| Earth for equipment | Neutra |
| Main Circuit type | Thyristor Bridge Inverter |

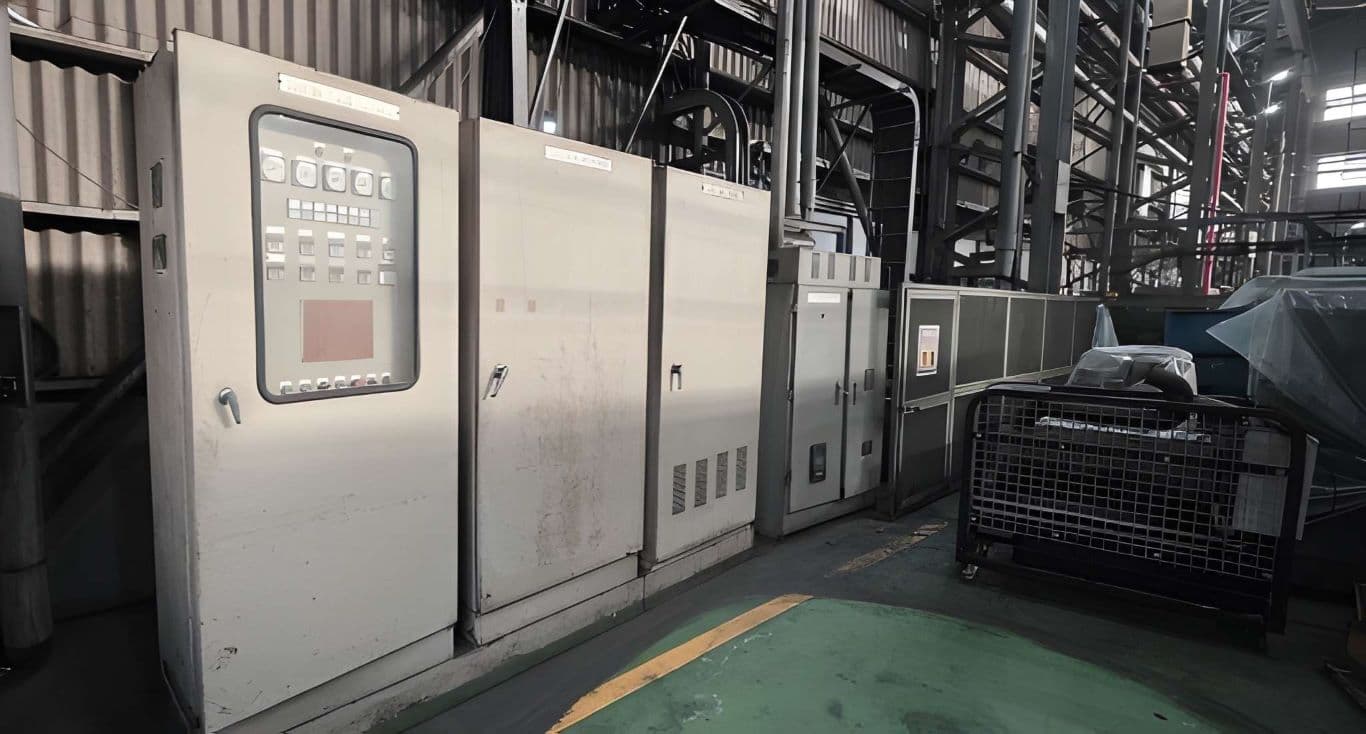

| Control, op. panel | |
| Type | Weight-based fully automatic control |
| Control Part | PLC (Q-Type, Mitsubishi) GOT-1000 (Touch Monitor) |
| Using Power | Control V |
| Water pressure | 3-4 kg/cm2 |
| Water Volume | 850 L/Min |
| Air pressure | 5-7 kg/cm2 |
| Material supply device | Step feeder |
