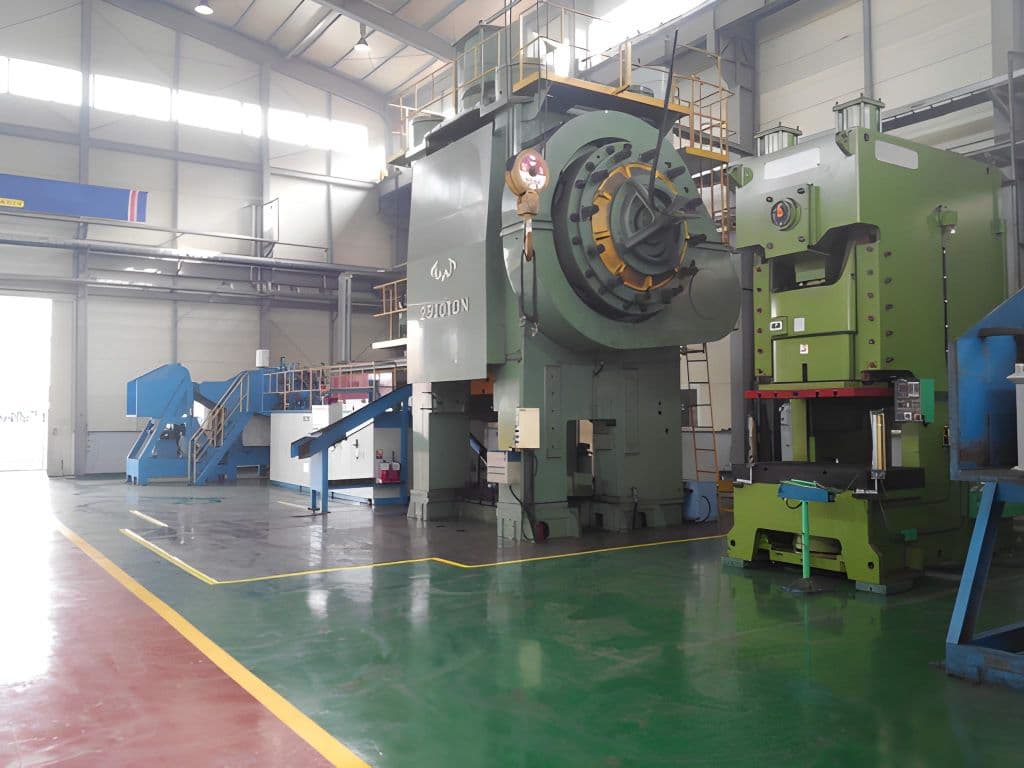

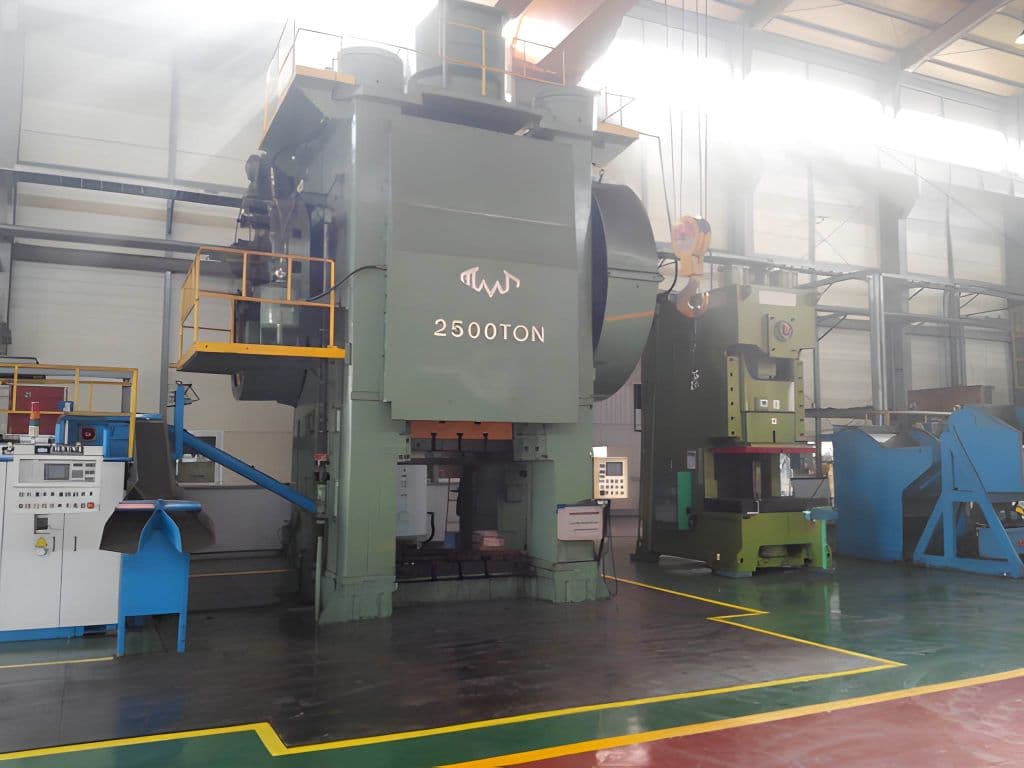

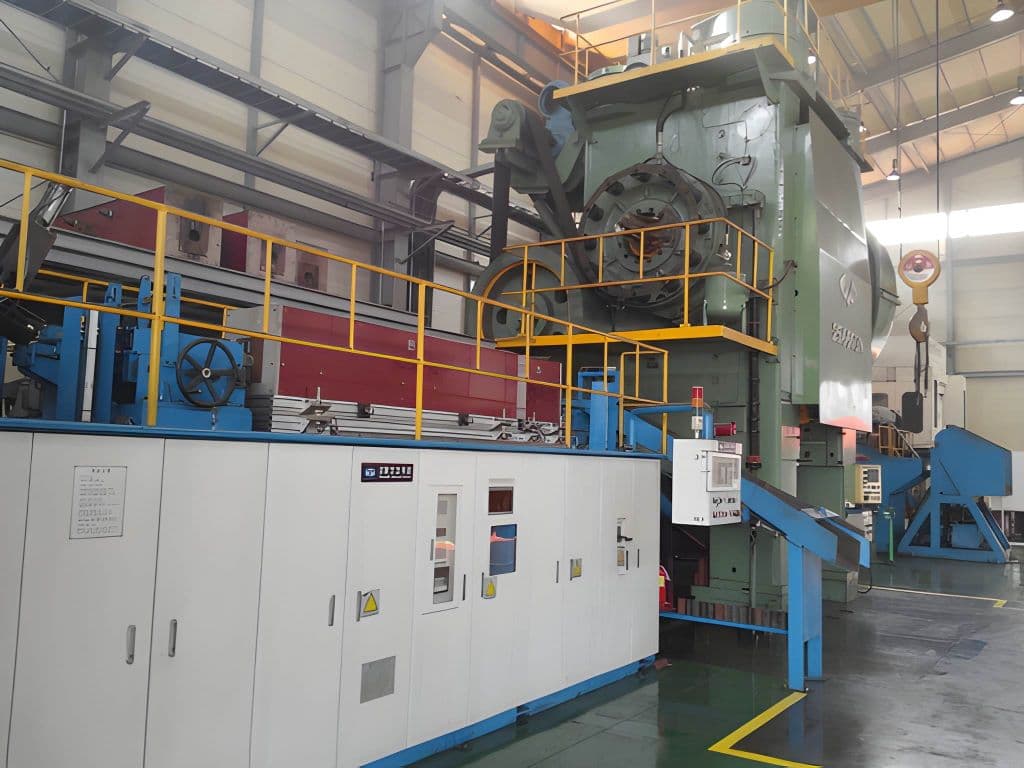

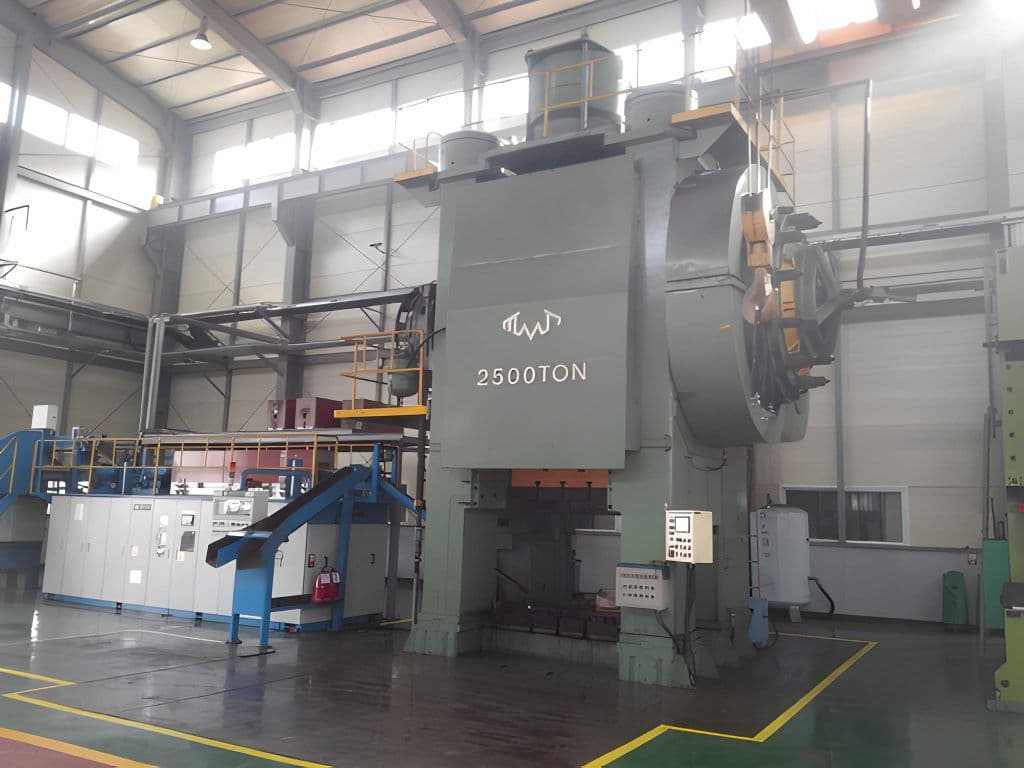

열간 단조 프레스 TMP Voronezh KA8044 - 2500 톤
제원 (EN) -
열간 단조 프레스 TMP Voronezh KA8044 - 2500 톤 (ID: S91479)
| Type | Hot forging press |
| Manufacturer | TMP Voronezh |
| Model | KA8044 |
| Press nominal capacity | 2500 ton |
| Slide stroke | 350 mm |
| SPM | 55 |
| Slide single strokes maximum frequency | 18 mm |
| Minimum distance between bed (intermediate plate, installed on bed) and upper bolster plate of slide in its lower position | 995 mm |
| Value of adjustment distance between bed and slide | 15 mm |
| Upper knock-out | |
| Positions number | 4 |
| Hydraulic cylinder effort | 50kN |
| Stroke | 60 mm |
| Working Pressure | 16 MPa |
| Lower knock-out | |
| Pusher stroke | 0.45 mm |
| Nominal capacity per one pusher | 100 kN |
| Total effort at forging every one stroke | 200 kN |
| Pusher number | 4 |
| Bed | 1750 x 1450 mm |
| Slide | 1350 x 1380 mm |
| Openings dimensions in press uprights (H/W) | 1070+10 / 900+10 mm |
| Main electric motor power | 132 kW |
| Total power of all electric motors | 142,87 kW |
