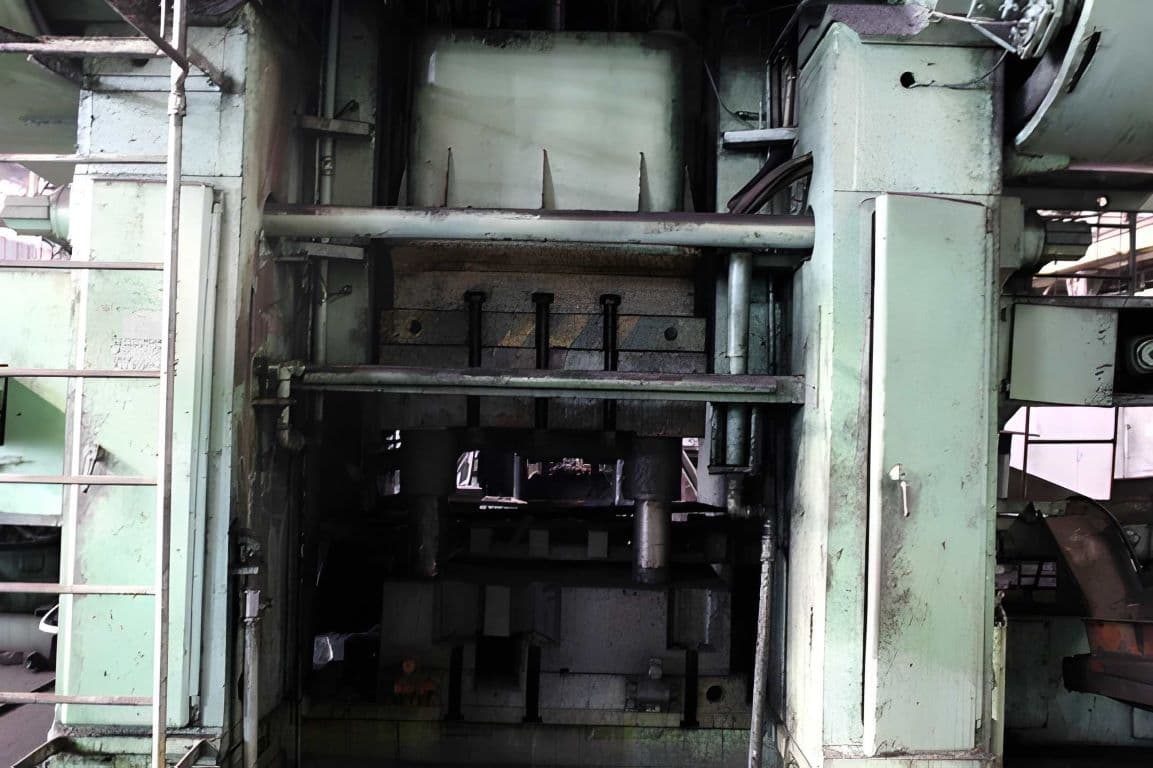

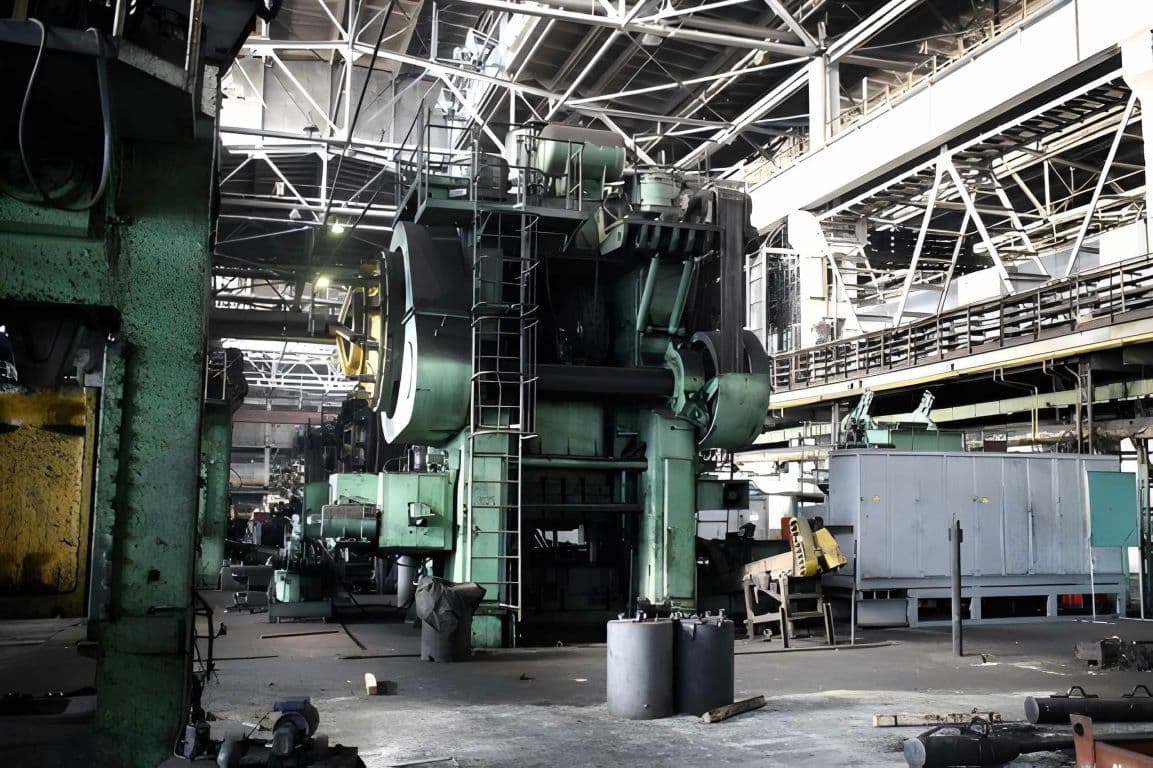

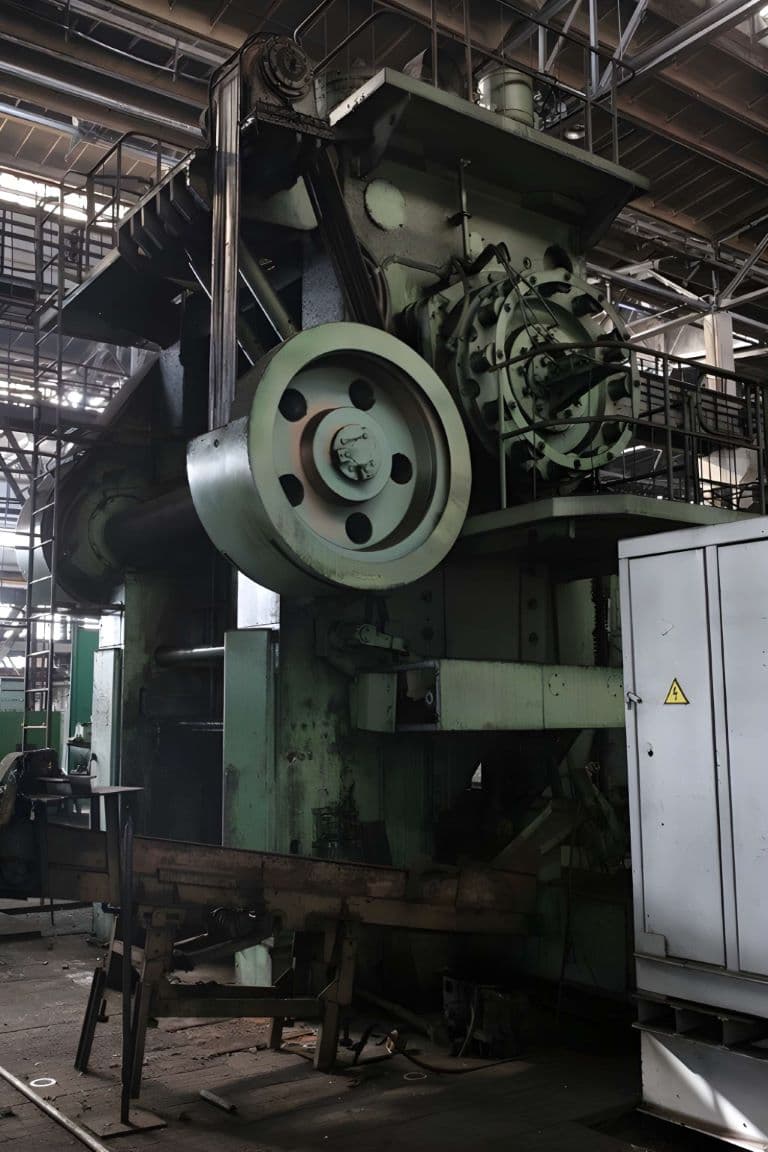

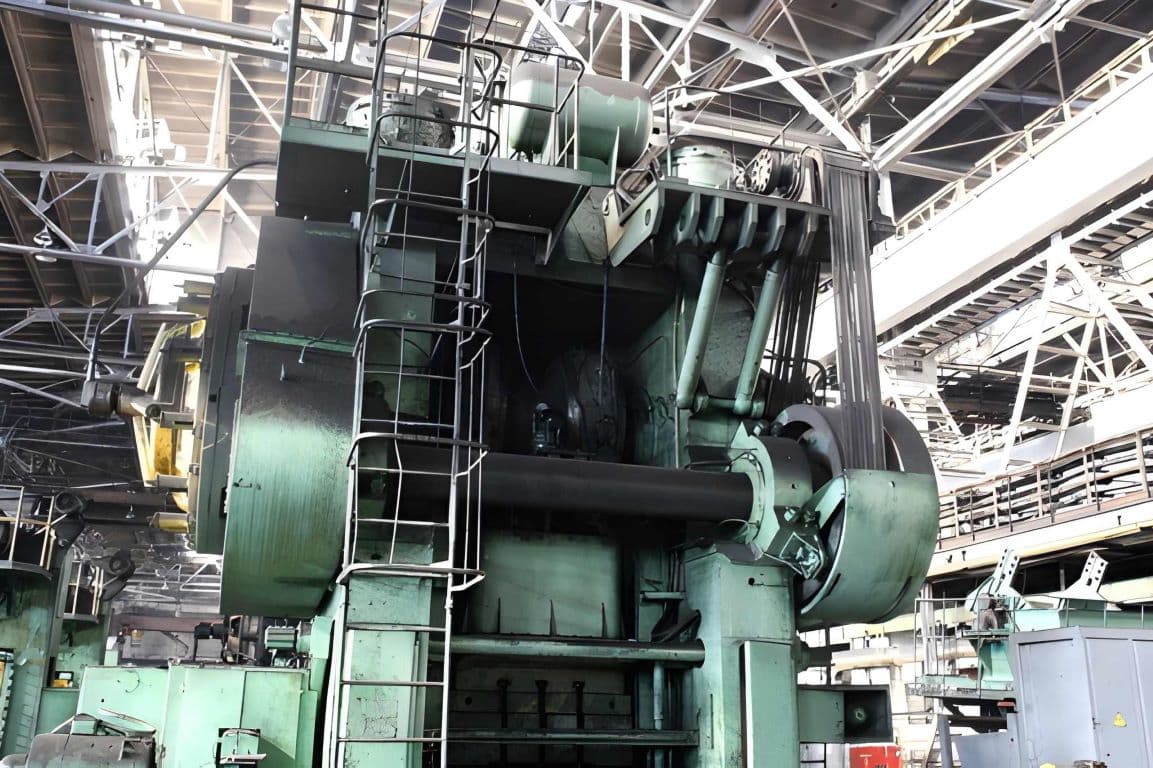

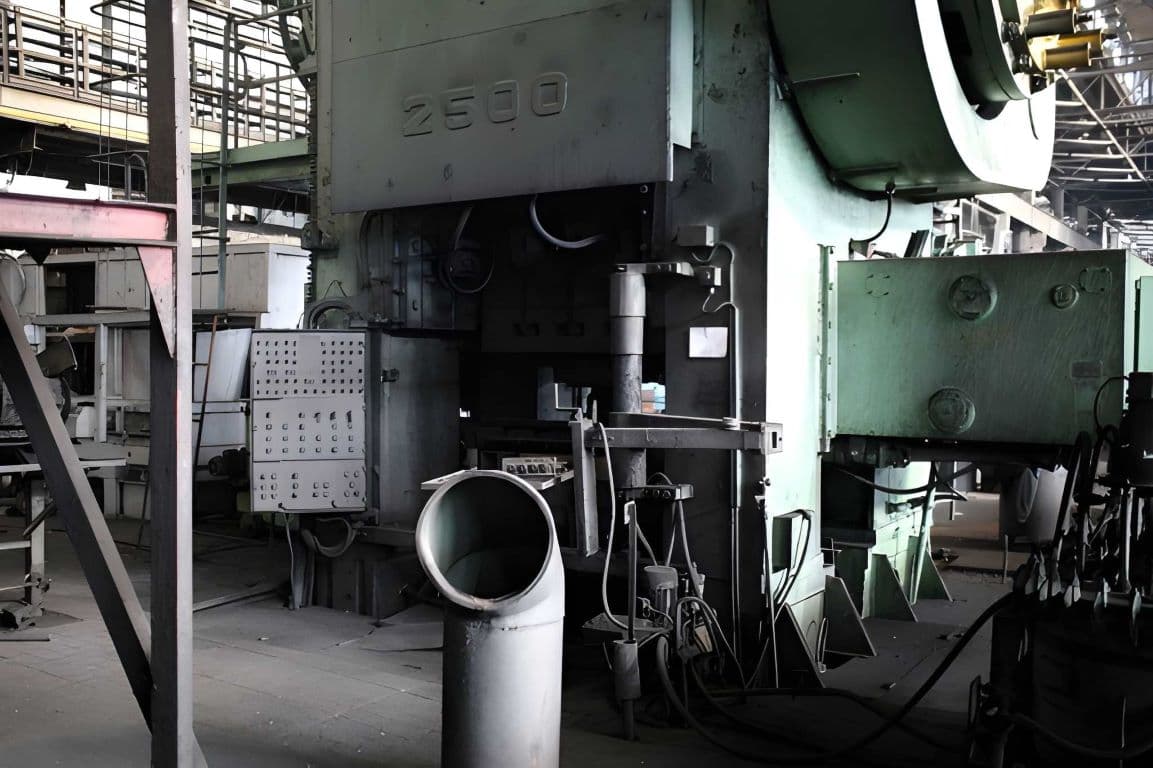

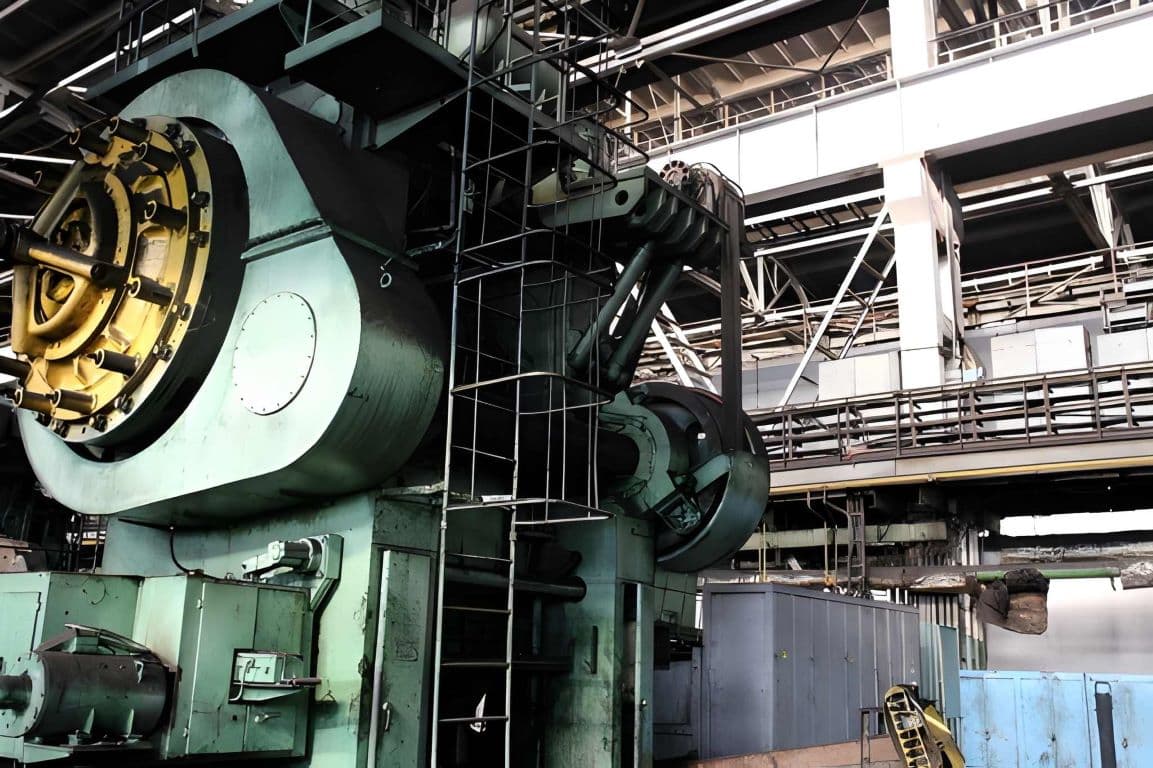

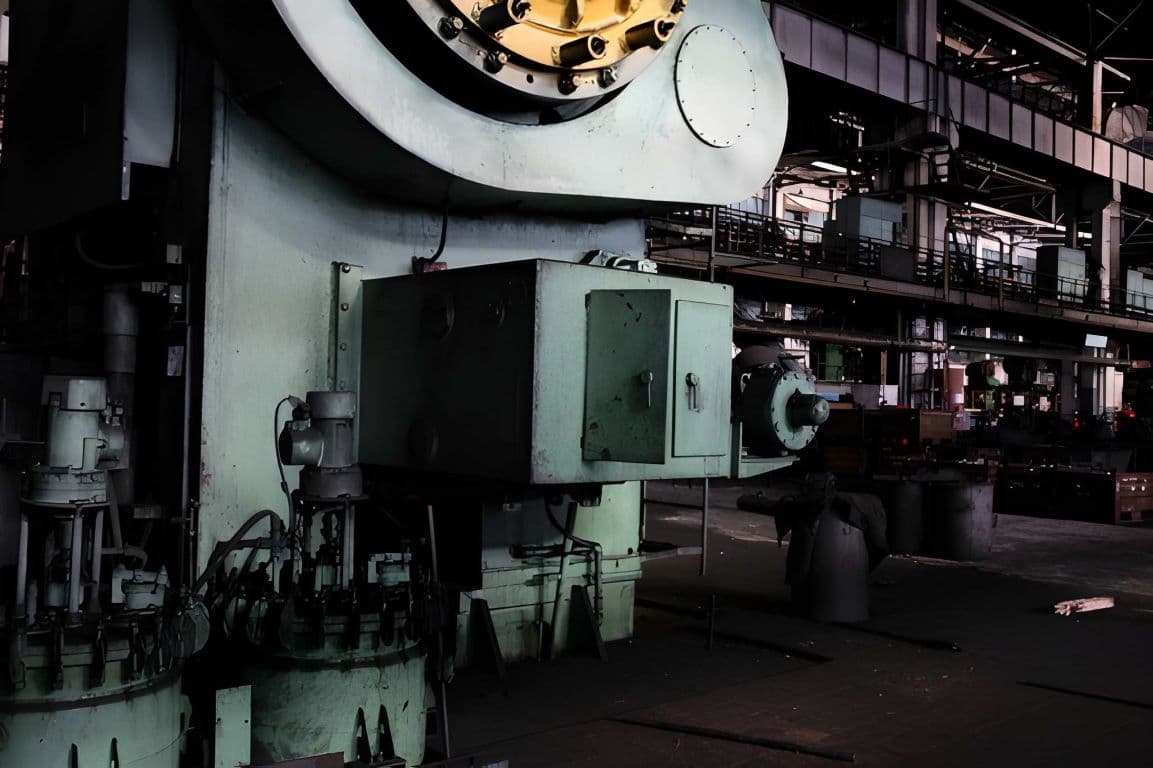

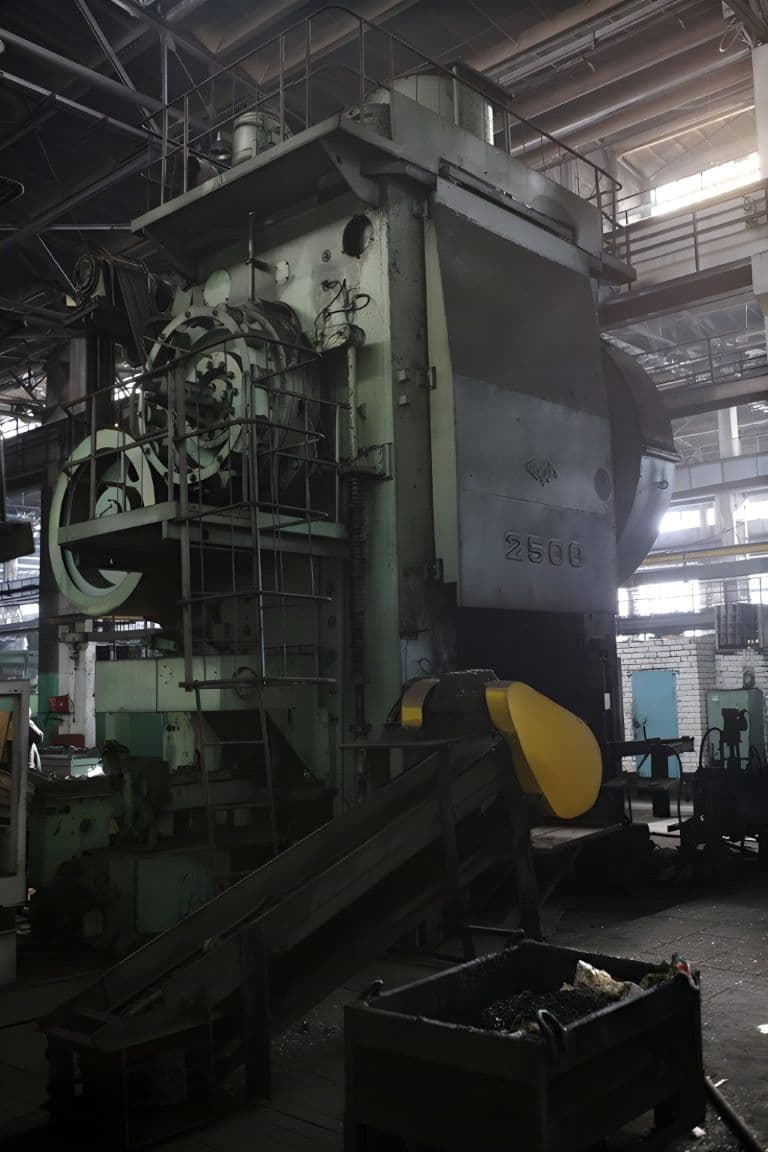

열간 단조 프레스 TMP Voronezh AKKD8044 - 2500 톤
제원 (EN) -
열간 단조 프레스 TMP Voronezh AKKD8044 - 2500 톤 (ID: S91485)
| Type | Hot forging press |
| Manufacturer | TMP Voronezh |
| Model | AKKD8044 |
| Capacity | 2500 ton |
| Slide stroke | 350 mm |
| SPM | 18-55 |
| Die height | 995 mm |
| Adjustment | 15 mm |
| Table | 1750 x 1450 mm |
| Slide | 1350 x 1380 mm |
| Dimensions of side windows in press (H / W) | 1070 / 900 mm |
| Overall dimensions of the press | |
| Left to right | 6690 mm |
| Front to back | 4800 mm |
| Height from floor level | 7890 mm |
| Press weight | 270 ton |
