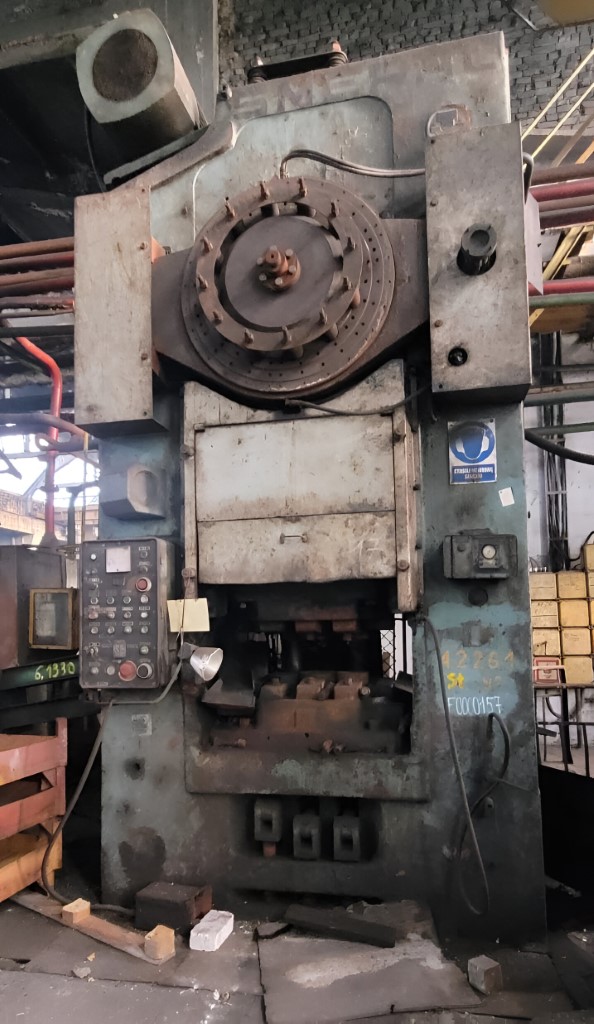

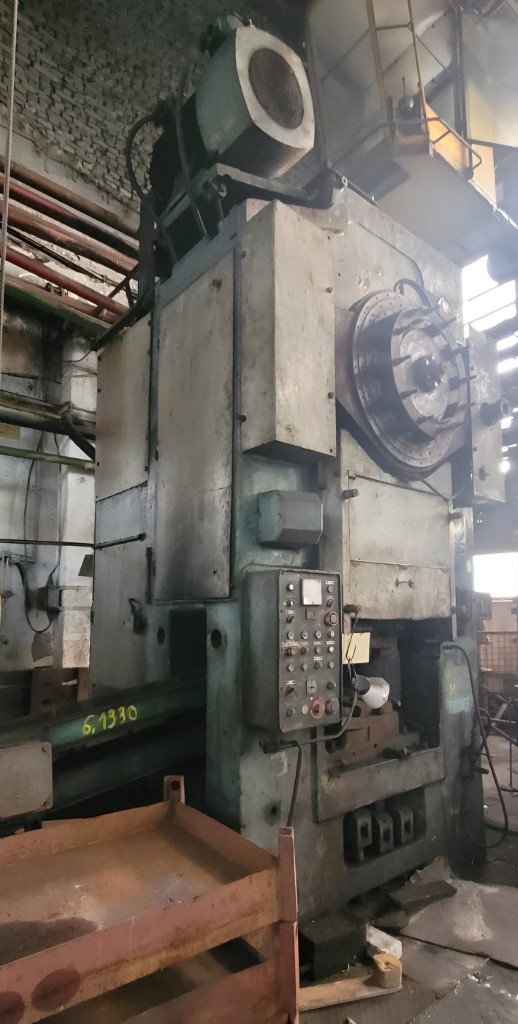

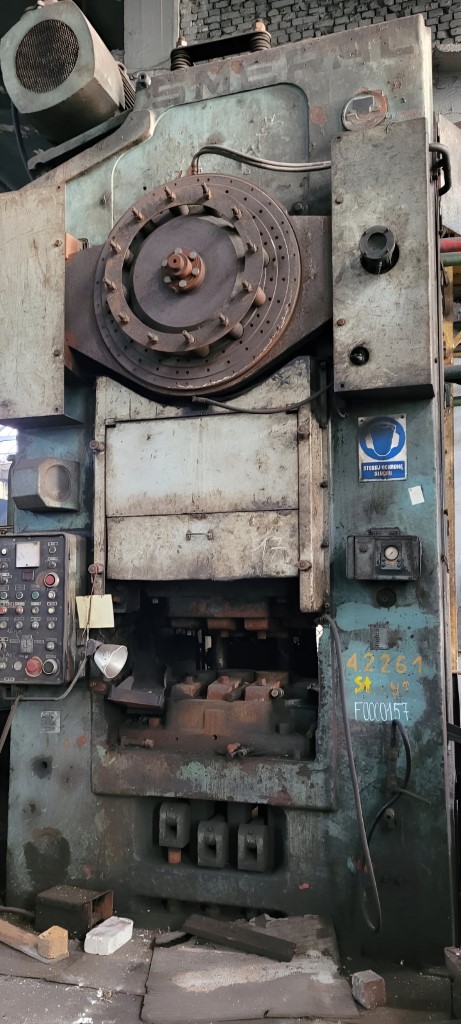

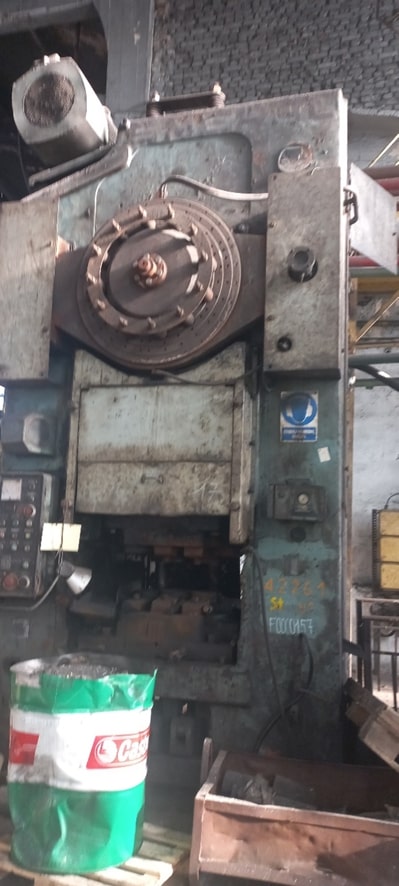

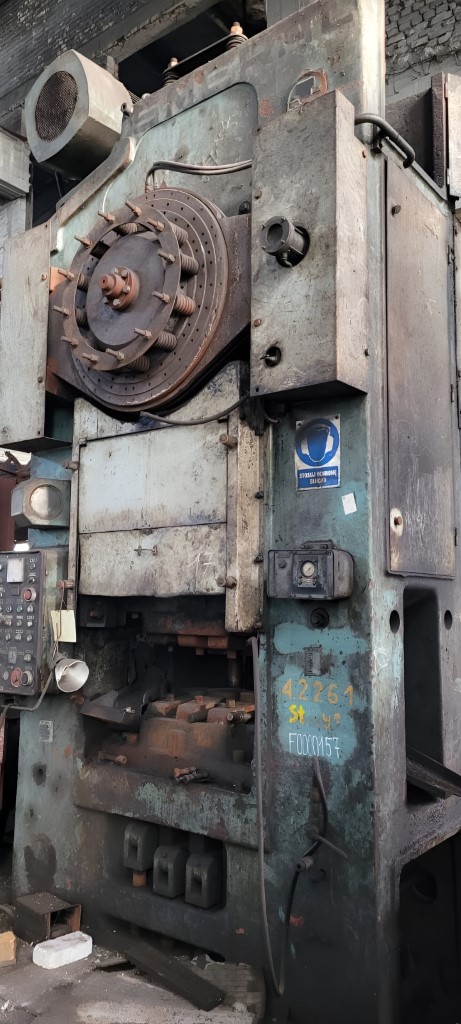

열간 단조 프레스 Smeral LZK 1000 - 1000 톤
제원 (EN) -
열간 단조 프레스 Smeral LZK 1000 - 1000 톤 (ID: 76393)
| Type | Hot forging press |
| Manufacturer | Smeral |
| Model | LZK 1000 |
| Nominal pressure | 1000 ton |
| Stroke | 220 mm |
| SPM | 100 |
| Ram adjustment | 10 mm |
| Shutheight | 620 mm |
| Width between uprights | 1040 mm |
| Table | 1000 x 950 mm |
| Ram | 840 x 750 mm |
| Stroke of upper ejector | 35 mm |
| Stroke of lower ejector | 50 mm |
| Main motor | 50 kW |
| Dimensions | |
| Height of press above floor | 4060 mm |
| Height tota | 14840 mm |
| Length of machine L-R | 2540 mm |
| Width of machine F-B | 2930 mm |
| Press weight approx. | 48 ton |
