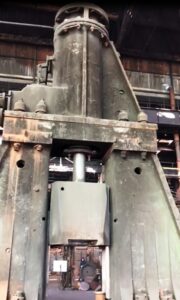

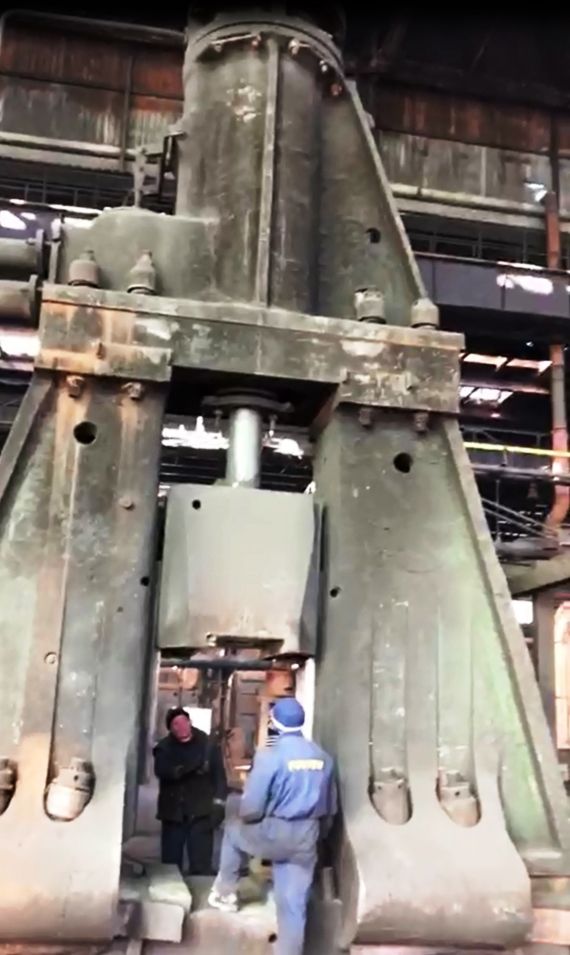

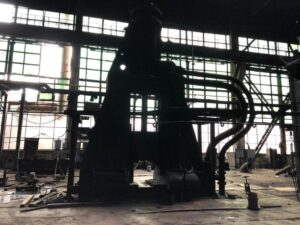

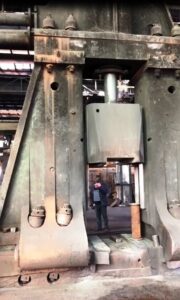

단조 해머 ICP-TCM 10 ton - 10 톤
제원 (EN) -
단조 해머 ICP-TCM 10 ton - 10 톤 (ID: 75632)
| Type | Forging hammer |
| Manufacturer | ICP-TCM |
| Model | 10 ton |
| Year of manufacture | 1984 |
| Weight of falling parts | 10000 kg |
| Maximum energy | 25000 kgm |
| Maximum piston stroke | 1400 mm |
| Distance between slides | 1000 mm |
| Cylinder diameter | 750 mm |
| Diameter control valve | 300 mm |
| Dimensions | |
| Height | 10450 mm |
| Height above ground | 7285 mm |
| Length in a horizontal chamber (without air ducts) | 3700 mm |
| Width (without nozzles) | 2100 mm |
| Number of beats per minute | 100 |
| Normal working pressure | 7-9 daN / cm2 |
