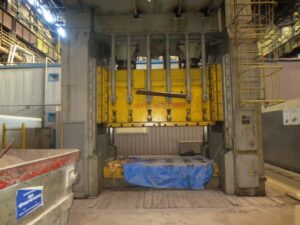

스탬핑 프레스 TMP Voronezh KA3540 - 1000 톤
제원 (EN) - 스탬핑 프레스 TMP Voronezh KA3540 - 1000 톤 (ID: 75399)
| Type | Stamping press |
| Manufacturer | TMP Voronezh |
| Model | KA3540 |
| Capacity | 1000 ton |
| Ram stroke | 400 mm |
| Max. ram strokes per min. | 20 |
| Shut height | 1060 mm |
| Ram adjustment | 320 mm |
| Table size | 3150 x 1800 mm |
| Ram size | 3066 x 1700 mm |
| Max. permitted stamp weight on the ram | 13000 kg |
| Column gap size | 1500 x 1900 mm |
| Bolster plate thickness | 250 mm |
| Ram travel to its extreme position where it develops nominal capacity | 12 mm |
| Pneumatic cushion capacity | 200 ton |
| Pneumatic cushion stroke | 200 mm |
| Upper knock-out capacity | 50 ton |
| Main motor power | 132 kW |
| Press dimensions | 5150 x 4700 x 7830 mm |
| Press weight | 200000 kg |
